Type 125AF (125 Series)

Type 125AF (125 Series)

125AF/MG_0706-Edit

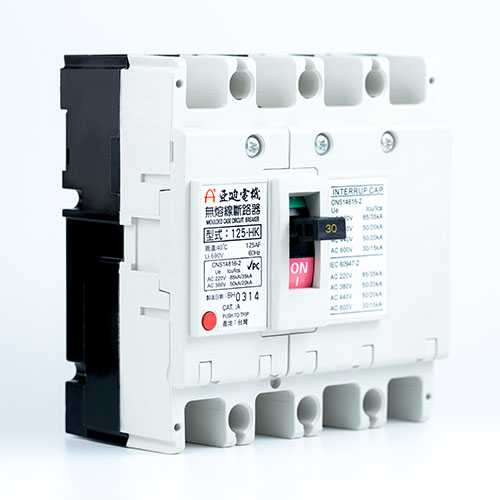

125AF/MG_0750-Edit_05
Arlis Electric has been working hard for many years, and has cooperated with domestic and foreign power system solution companies stably, striving to become a professional design and manufacturing factory that can be relied on and provide sustainable solutions.
Welcome to contact us.
Download Add to inquiry
DESCRIPTION

125 series  No-fuse circuit breaker - MCCB

 框架容量 AF A 125
 型式 Type   125-EK 125-SK 125-HK
 極數 Poles P 2 3 2 3 4 2 3
 額定絶緣電壓 Ui VAC 690
 額定電流 Ue VAC 600
 額定電流 In A 15、20、30、40、50、60、75、100、125
 額定起斷容量 (kA)
 Icu / Ics
 CNS14816-2
 IEC 60947-2
220V 35/18 50/25 85/35
380V 25/13 30/15 50/20
440V 18/9 25/13 50/20
600V 15/8 20/10 30/15
 額定起斷容量 (kA)
 asym/sym
 CNS 2931
220V 40/35 60/50 100/85
380V 30/25 35/30 60/50
440V 20/18 30/25 60/50
500V 16/15 22/20 35/30
 跳脫方式 Tripping   熱動 - 電磁式 thermal-magnetic

 尺寸 (mm)
 Dimensions

a 60 90 60 90 120 90
b 130
c 68
d 90
aa - 30 - 30 60 30
bb 111
 重量 Wt. kg 0.7 0.9 0.7 0.9 1.3 0.7 0.9



With a frame capacity of 125AF, the 125 Series offers three main types: the 125-EK, the 125-SK, and the 125-HK. The 125-EK and 125-HK are available in 2 and 3 poles, respectively, while the 125-SK offers 4 poles. The choice of poles allows for flexible configuration according to specific needs and requirements.

The 125 Series is designed to operate within a rated insulation voltage (Ui) of 690V, ensuring safe and efficient electrical performance. The rated voltage (Ue) is 600V, making it compatible with a wide range of electrical systems and applications.

The 125 Series provides various options for rated current (In), including 15A, 20A, 30A, 40A, 50A, 60A, 75A, 100A, and 125A. This versatility allows users to select the appropriate current rating based on their specific load demands.

For rated breaking capacity (kA), the 125 Series exhibits different values depending on the voltage level. At 220V, the 125-EK has a rating of 35/18kA, the 125-SK has a rating of 50/25kA, and the 125-HK offers 85/35kA. At 380V, the ratings are 25/13kA for the 125-EK, 30/15kA for the 125-SK, and 50/20kA for the 125-HK. These breaking capacities ensure reliable protection against overloads and short circuits.


Product Image

125AF series
