BH series  Circuit breaker for distribution panel - MCB

 框架容量 AF A 50 100 50 100 50 100 50 100
 型式 Type   BH HBH SBH RBH
 極數 Poles P 1 2 3 1 2 3 1 2 3 1 2 3
 額定電壓 Ue VAC 110 220 110 220 110/220 220 220/380 110/220 220 220/380
 額定電流 In A 15/20/
30/40/50
15/20/30/40/
50/60/75/100
15/20/
30/40/50
15/20/30/40/
50/60/75/100
15/20/
30/40/50
15/20/30/40/
50/60/75/100
15/20/
30/40/50
15/20/30/40/
50/60/75/100
 額定起斷容量 (kA)
 Icu / Ics
 CNS14816-2
 IEC 60947-2
110V 5/2.5 - 10/5 - 15/5 - 25/13 -
220V - 5/2.5 - 10/5 10/5 15/7.5 15/6 25/13
 380V - 10/5 -
 結線方式 Connection   壓著式 clamping
 跳脫方式 Tripping   熱動 - 電磁式 thermal-magnetic
尺寸(mm)
Dimernsions
a 25 50 75 25 50 75 25 50 75 25 50 75
b 95
c 60
d 78
 重量 Wt. g 140 290 440 150 300 460 180 360 450 200 400 600



The BH General Type offers a versatile range of options to meet various electrical needs. With a frame capacity of AF, it provides flexibility in terms of poles and rated voltage. The BH, HBH, SBH, and RBH types cater to different requirements, ensuring compatibility with diverse applications.

When it comes to poles, the BH General Type offers options for 1, 2, or 3 poles, allowing users to choose the appropriate configuration for their specific needs. The rated voltage of the BH General Type is available in VAC, with options such as 110V, 220V,enabling compatibility with different power systems.

For rated current, the BH General Type offers a range of choices to accommodate various load requirements. With options like 15/20A, 30/40/50A, and 50/60/75/100A, users can select the appropriate current rating based on their specific application demands.

The BH General Type also prioritizes safety with its rated breaking capacity. With values like 5/2.5kA, 10/5kA, and 25/13kA for different voltage levels, it ensures reliable performance and protection in case of overloads or faults.

In terms of dimensions, the BH General Type is designed with specific measurements. The dimensions vary, with values such as 25mm, 50mm, and 75mm for different parameters like a, b, c, and d. These dimensions ensure proper fit and compatibility within electrical systems.


Product Image

black 1P-BH50AF


black 2P-BH100AF

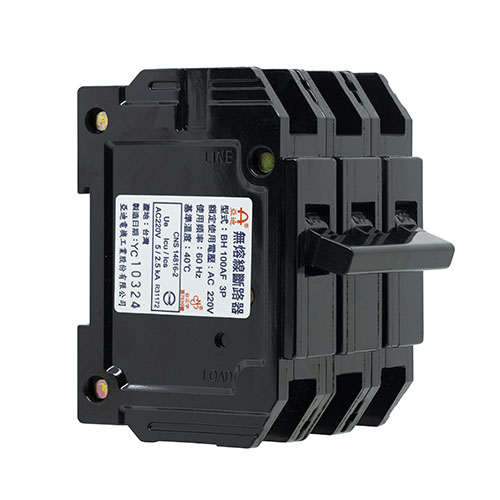

black 3P-BH100AF
