Outdoor Waterproof Special Leakage Protection Circuit Breaker

Outdoor Waterproof Special Leakage Protection Circuit Breaker

MG_0661-Edit/MG_0682-Edit
Arlis Electric has been working hard for many years, and has cooperated with domestic and foreign power system solution companies stably, striving to become a professional design and manufacturing factory that can be relied on and provide sustainable solutions.
Welcome to contact us.
Download Add to inquiry
DESCRIPTION

Waterproof type SEG series

 框架容量AF A 30
 型式 Type   SEG30
 極數 Poles P 2
 相線式 Φ.W   1Φ2W
 額定電壓 Ue VAC 110/220
 額定電流 In A 15、20、30
 額定靈敏度電流 I△n mA 30、100、200、300
 不動作電流 I△no mA 1/2 I△n
 動作時間 Trip time   0.1 秒以內 within 0.1 second
 額定短時間電流 kA 1.5

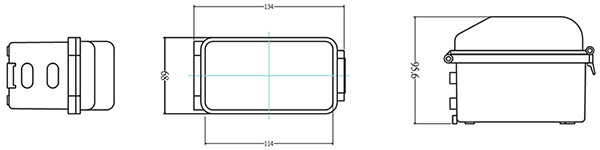

 尺寸 (mm)
 Dimensions

 重量 Wt. g 260



Waterproof type AES AEP series

 框架容量AF A 50
 型式 Type   AES AESH AEP
 極數 Poles P 2 2 3
 相線式 Φ.W   1Φ2W
 額定電壓 Ue VAC 220
 額定電流 In A 15、20、30、40、50

 額定靈敏度電流 (kA)
 lcu
 CNS 5422

110V 5 10 5
220V 5 10 5
380V -
440V -
 額定靈敏度電流 I△n mA 30、100、200、300 30、100、300、500
 不動作電流 I△no mA 1/2 I△n
 動作時間 Trip time   0.1秒以內 within 0.1 second
 跳脫方式 Tripping   熱動- 電磁式 thermal-magnetic
 尺寸 (mm)
 Dimensions

 重量 Wt. g 450

The Waterproof Type SEG and AES AEP series are reliable and versatile circuit breakers designed for various applications. Let's take a closer look at their key features and specifications:

Waterproof type SEG series:

With a framework capacity of 30A, the SEG30 offers efficient protection in wet environments.
It comes in a 2-pole configuration, ensuring reliable power distribution.
The SEG series is suitable for single-phase, two-wire systems (1Φ2W).
Rated voltage options include 110V and 220V.
Available rated currents are 15A, 20A, and 30A, catering to different load requirements.
It features adjustable sensitivity with rated leakage currents of 30mA, 100mA, 200mA, and 300mA.
The trip time is less than 0.1 second, providing quick response and enhanced safety.
The SEG series has a compact size and weighs only 260g, making installation and handling convenient.
Waterproof type AES AEP series:

The AES AEP series offers a higher framework capacity of 50A, suitable for demanding applications.
It is available in 2-pole (AES) and 3-pole (AESH, AEP) configurations, providing flexibility in power distribution.
Similar to the SEG series, it is designed for single-phase, two-wire systems (1Φ2W).
The rated voltage is 220V, ensuring compatibility with standard power supplies.
Rated currents range from 15A to 50A, allowing for various load requirements.
Leakage current sensitivity options include 30mA, 100mA, 200mA, 300mA, and 500mA (AESH and AEP models).
The AES AEP series features thermal-magnetic tripping and a trip time of less than 0.1 second for quick response.
It is designed with durability in mind, with a weight of 450g.
Both the SEG and AES AEP series provide reliable and efficient protection against electrical faults in challenging environments. Whether you need waterproof circuit breakers for residential or industrial applications, these series offer a wide range of options to meet your specific requirements.

Product Image

front

side



side



front

side



side
