DESCRIPTION

AEP-S series Leakage protection power cord set - EL Protector

 型式 Type   ASP-1502S ASP-3002S ASP-1503S ASP-3003S
 額定電流 In A 15
 極數 Poles P 2P 2P+E
 相線式 Φ.W   1Φ2W 1Φ3W
 額定電壓 Ue VAC 100~120
 額定靈敏度電流 I△n mA 15 30 15 30
 不動作電流 I△no mA 7.5 15 7.5 15
 動作時間 Trip time   0.1 秒以內 within 0.1 second
 額定啟斷容量 kA 1
 負載,端裝置 Load terminal   2mm2x2c,附插座 socket 2mm2x3c,附插座 socket
 尺寸 (mm)
 Dimensions




 重量 Wt. kg 95 98





AEP-W series Leakage protection power cord set - EL Protector

 型式 Type   ASP-1502W ASP-3002W ASP-1503W ASP-3003W
 額定電流 In A 15
 極數 Poles P 2P 2P+E
 相線式 Φ.W   1Φ2W 1Φ3W
 額定電壓 Ue VAC 100~120
 額定靈敏度電流 I△n mA 15 30 15 30
 不動作電流 I△no mA 7.5 15 7.5 15
 動作時間 Trip time   0.1 秒以內 within 0.1 second
 額定啟斷容量 kA 1
 負載,端裝置 Load terminal   with  2mm2x2c,1.8 lead with 2mm2x3c,1.8 lead
 尺寸 (mm)
 Dimensions




 重量 Wt. kg 198 274

Note:
1.This product has passed the standard inspection bureau type test, and the verification registration number is R31172
2.This product has passed the Japanese JET2664-42011-1001 certified
3.This product has been registered as a new type by domestic patent No. 209805





Introducing the AEP-S and AEP-W series Leakage Protection Power Cord Sets. These power cord sets are designed to prioritize electrical safety, offering reliable protection against leakage, overload, and short circuits. The AEP-S series is available in 2P and 2P+E configurations, while the AEP-W series provides options for 2P and 2P+E connections. With a rated current of 15A and compatibility with a voltage range of 100-120V, these power cord sets are suitable for various electrical applications.

Equipped with a sensitive trip mechanism, the AEP-S and AEP-W series ensure quick response times within 0.1 second to promptly address electrical faults. The sensitivity current can be adjusted to 15mA or 30mA, providing flexibility in meeting specific requirements. Additionally, the non-operation current is set at 1/2 I△n to prevent unnecessary tripping.

Both series feature load terminals, facilitating easy and secure connections. The AEP-S series is designed with 1Φ2W and 1Φ3W wiring options, while the AEP-W series offers 1Φ2W and 1Φ3W configurations. These power cord sets have undergone stringent testing and meet quality standards, evident in their compliance with the standard inspection bureau type test and certification by JET2664-42011-1001.


Product Image

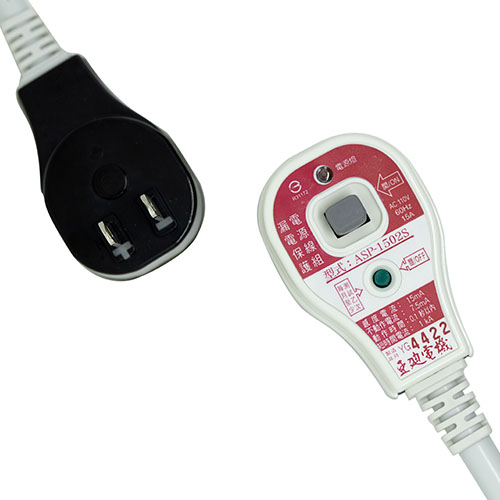

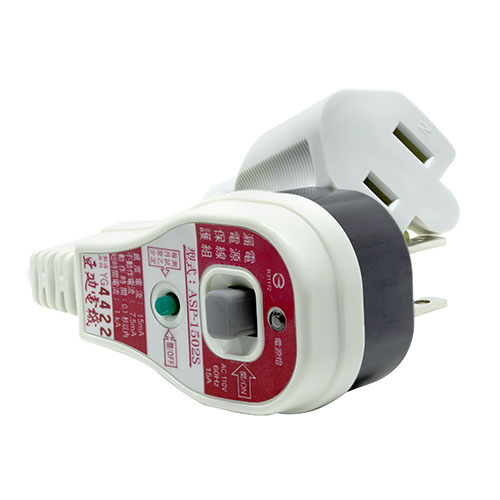

Leakage protection power cord ASP-1502S



front and back (red)

front side (red)



side (red)

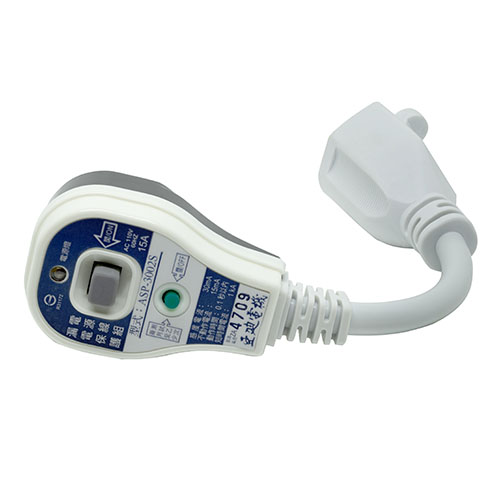

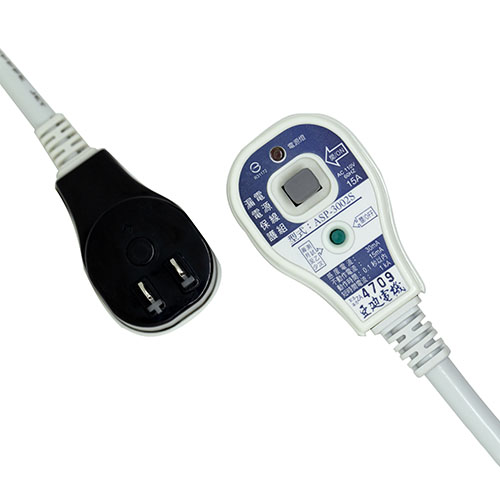

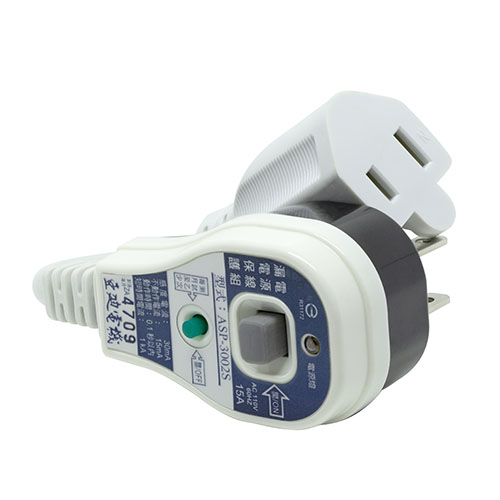

Leakage protection power cord ASP-3002S



front and back (blue)

front side (blue)



side (blue)

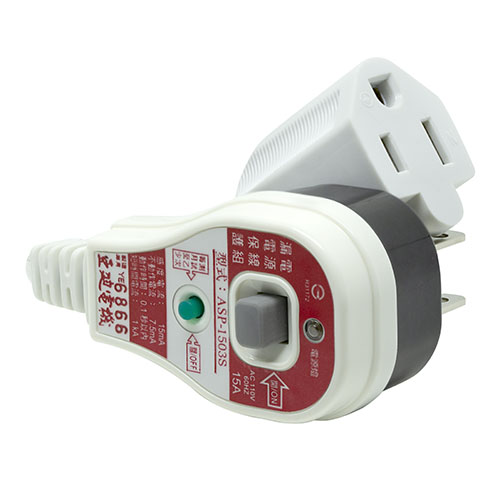

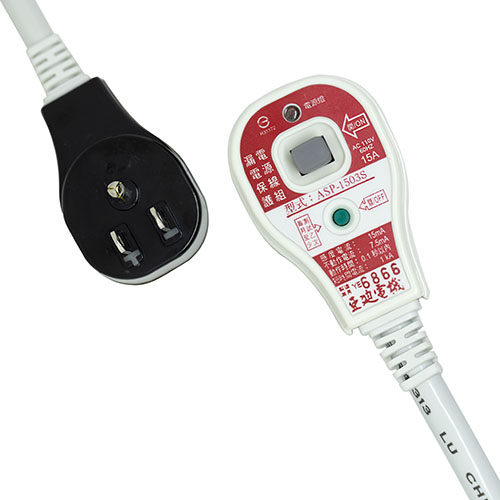

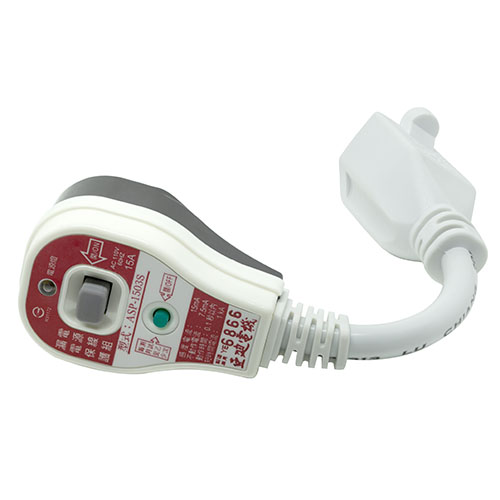

Leakage protection power cord ASP-1503S



front and back (red)

front side (red)



side (red)

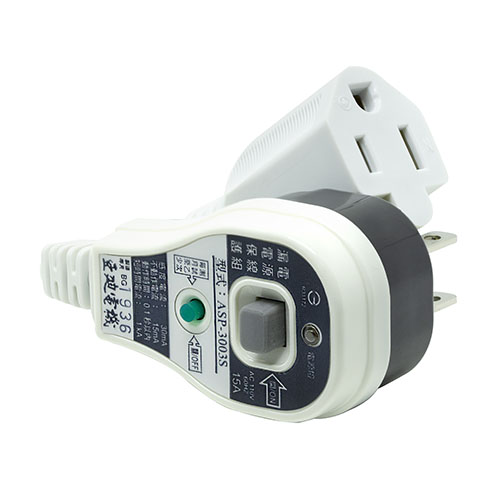

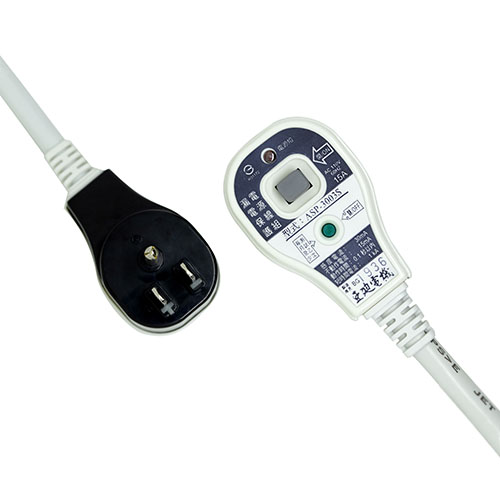

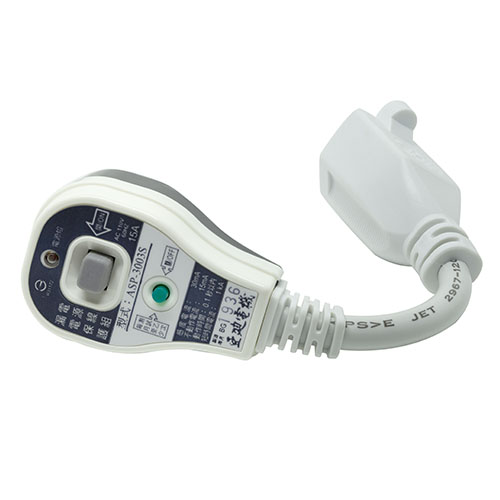

Leakage protection power cord ASP-3003S



front and back (blue)

front side (blue)



side (blue)

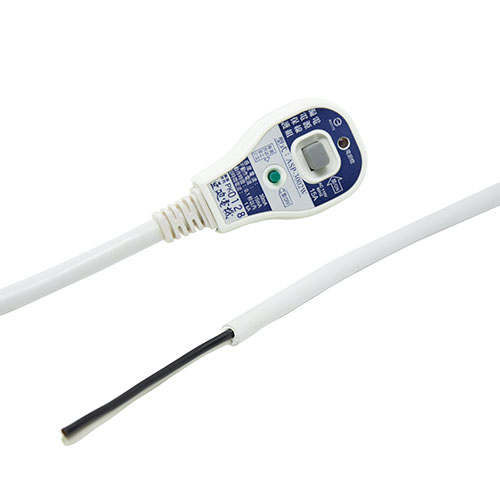

Leakage protection power cord ASP-3002W



front (blue)

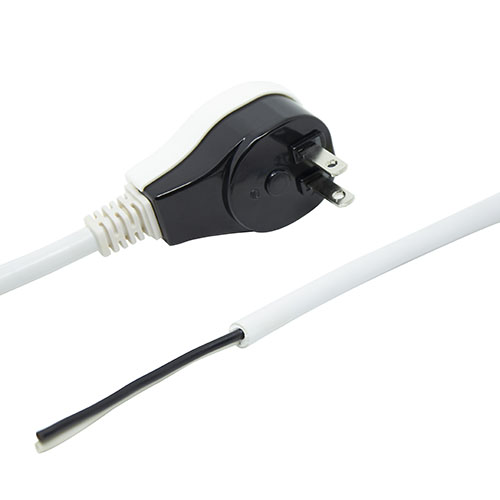

back (blue)

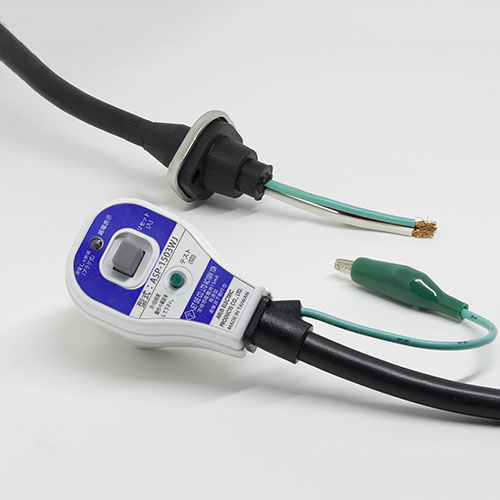

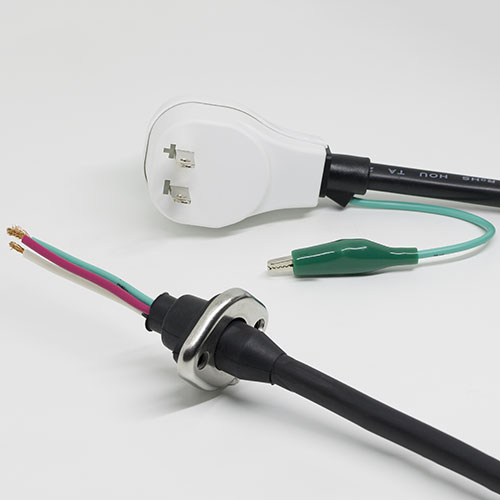

Leakage protection power cord ASP-1503WJ



front

back

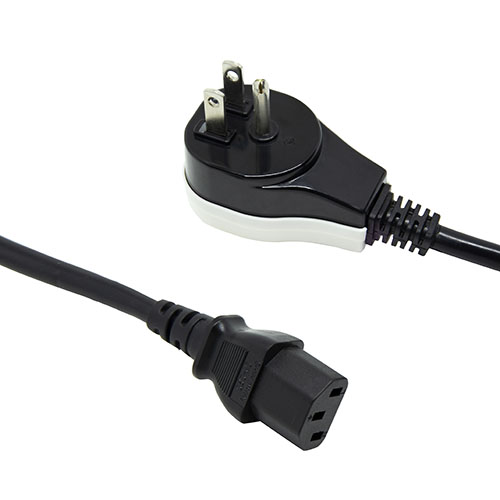

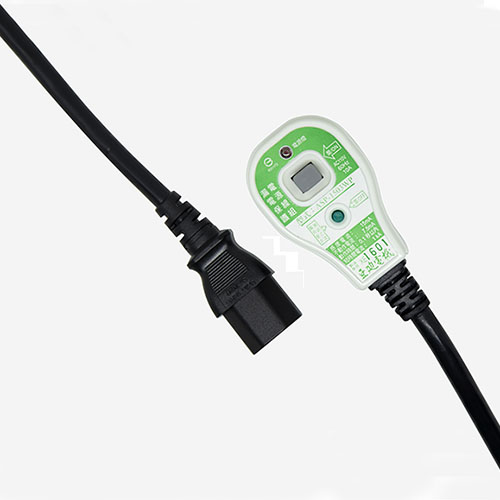

Leakage protection power cord ASP-1503WP



front

back

Leakage protection power cord ASP-1502D

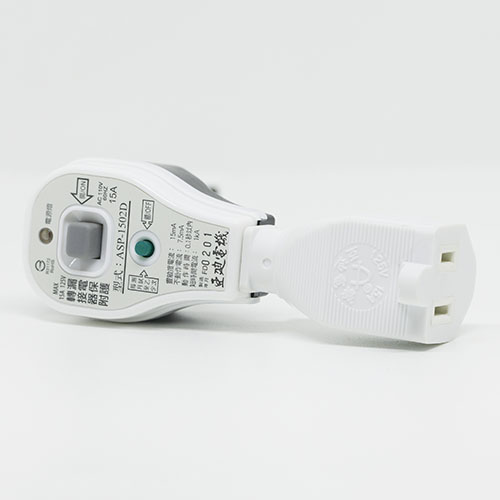

lie face up

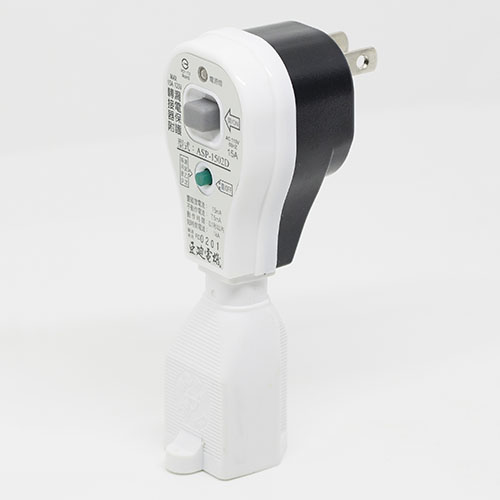

side front

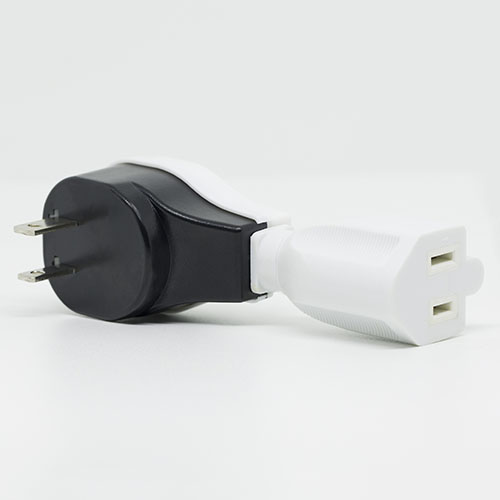

back



Leakage protection power cord ASP-1503D



lie face up

side front



back
