DESCRIPTION

ACP series current protector - Current Protector

 框架容量AF A 100
 型式 Type   ACP ACP-W
 極數 Poles P 1 2 3 4 1 2 3 4
 額定電壓 Ue

VAC 250
VDC 80
 額定電流 In A 10、15、20、25、30、40、50、60、75、100
 動作特性 Time delay   H : 高速型 fast,M : 中速型 middle,L : 低速型 slow
 額定啟斷容量 I.C. (kA)   AC250V/1.5kA ‧ DC80V/1.5kA
 內建輔助接點 Aux.contact   無/N.A. 有/with
 輔助接點容量 Aux.cont.rating   --- 125-250VAC/5A

 尺寸 (mm)
 Dimensions

a 19 38 57 76 19 38 57 76
b 69 69 69 69 69 69 69 69
c 64 64 64 64 64 64 64 64
d 83 83 83 83 83 83 83 83
 重量 Wt. g 88 178 270 360 92 182 274 364



The ACP Series is designed to operate within a rated voltage (Ue) of 250V AC and 80V DC, making it suitable for a wide range of electrical systems. The rated current (In) options for the ACP Series range from 10A to 100A, providing flexibility to meet different load demands.

The ACP Series offers different time delay characteristics for the tripping mechanism, including high-speed (H), medium-speed (M), and low-speed (L). This allows for customized protection based on the specific needs of the electrical system.

For rated breaking capacity (I.C.), the ACP Series is capable of handling 1.5kA at AC250V and DC80V. This ensures reliable interruption of the circuit in case of overcurrent events.

The ACP-W type of the ACP Series is equipped with built-in auxiliary contacts, offering additional functionality and control. These auxiliary contacts have a rating of 125-250VAC/5A, providing versatility in system integration.

Product Image

ACP-40A-1P With latch

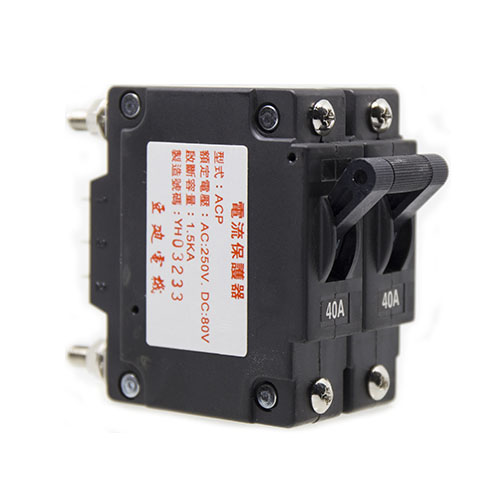

ACP-40A-2P With latch


ACP-40A-3P With latch
